Wall Wash

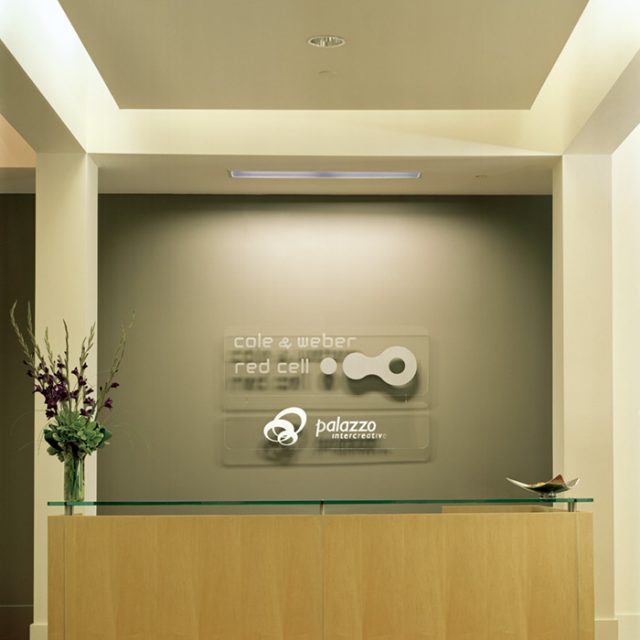

ELP offers a variety of highly efficient LED asymmetric distribution products for uniform illumination of walls to balance the lighting in the space or high-lighting a logo or artwork.

Recessed

Fixture Mounting Nominal Sizes Fixture Lumens (per foot) View or Download
AK LED Recessed / Gypsum 3-1/2” deep x 8-1/2” W x 12” to 48” L up to 3010 per foot
AKTB LED Recessed / T-Bar / Continuous 3-1/2" deep x 8-1/2" W x 24" to 48" L up to 3010 per foot
DW LED Recessed / Gypsum 5" deep x 6" W x 24" to 96" L up to 943 per foot
DWTB LED Recessed / T-Bar / Continuous / Wall Slot 5" deep x 6" W x 24" to 96" L up to 943 per foot
HITW LED Recessed / Cast GRG Composite 3-1/2" to 4-1/4" deep x 12" to 46" H x 8-5/8" to 64" L up to 671 per foot
IW LED Recessed / Gypsum 5" deep x 10" W x 24" to 48" L up to 1143 per foot
IWTB LED Recessed / T-Bar / Continuous 5" deep x 10" W x 24" to 48" L up to 1143 per foot
LW LED RECESSED / GYPSUM 3 1/2" DEEP X 4" W X 12" TO 48" L 1325
LWCC & LWCW LED RECESSED / GYPSUM / CONTINUOUS 3 1/2" DEEP X 4" W X 24" TO 48" L 1325
LWTB LED RECESSED / T-BAR - CONTINUOUS 3 1/2" DEEP X 4" W X 24" TO 48" L 1325

Surface

Fixture Mounting Nominal Sizes Fixture Lumens (per foot) View or Download
AKS LED Surface / Pendent / Continuous 3-1/2” deep x 8-1/2” W x 24” to 48” L up to 3010 per foot
DWS LED Surface / Pendent / Continuous 5" deep x 6" W x 24" to 96" L up to 943 per foot
IWS LED Surface / Pendent / Continuous 5" deep x 10" W x 24" to 48" L up to 1143 per foot
LWS SURFACE / PENDANT / CONTINUOUS 3 1/2" DEEP X 4" W X 24" TO 48" L 1325

Trimless

Fixture Mounting Nominal Sizes Fixture Lumens (per foot) View or Download
AK LED TLD & TLP Trimless 3-1/2" Deep x 8-1/2" W x 12" to 48" L up to 3010 per foot
DW LED TLP & TLD Trimless 5" Deep x 6" W x 24" to 96" L up to 943 per Foot
IW LED TLD & TLP Trimless 5" Deep x 10" W x 24" to 48" L up to 1143 per Foot
LW LED TLD & TLP TRIMLESS 3 1/2" DEEP X 4" W X 12" TO 48" L 1325
  • Catalog Cut
  • Installation Instructions
  • IES Photometrics
  • BIM Files
